DC-link Voltage Ripple Control of Regenerative CHB Drives for Capacitance Reduction

ABSTRACT:

The diode-front-end (DFE) CHB inverters have prevailed in the non-regenerative industry drive domain for high-power medium-voltage applications. The regenerative version of the CHB drives is made possible by adding the extra active-front-end (AFE) rectifier in each power cell, such as a three-phase PWM rectifier. However, due to the instantaneous power unbalance, the dc-link capacitors of the regenerative power cell need to be overdesigned to maintain a stable low ripple dc-link voltage. To reduce the dc-link capacitance, this paper proposes a novel closed-loop voltage ripple controller for the regenerative CHB drive without adding extra sensors. In the proposed method, dc-link voltage ripple amplitude and phase angle are accurately detected with a high-performance adaptive filter. Moreover, a latent instability issue is discussed and is avoided in the proposed controller. The performance of the proposed control strategy is validated experimentally on a seven-level regenerative CHB drive.

KEYWORDS:



1.      Multilevel Drives

2.      DC-Link Capacitor Reduction

3.      Regenerative

4.      Adaptive filtering

5.      Stability

SOFTWARE: MATLAB/SIMULINK

 SCHEMATIC DIAGRAM:



Fig. 1 Proposed Capacitor Reduction Control Scheme based on Adaptive Filter

 EXPECTED SIMULATION RESULTS:

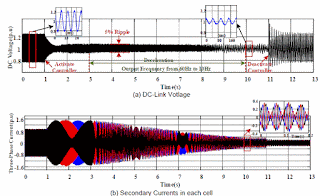

Fig. 2 Simulation Result with Frequency Varitaion



CONCLUSION:

Due to the unbalanced instantaneous power flow, an oversized dc-link capacitor is required to be designed in each power cell to achieve a low voltage ripple dc-bus in regenerative CHB drives. To reduce the dc-link capacitance while maintaining a low dc-link voltage ripple, this paper proposes a novel closed-loop voltage ripple controller for the regenerative CHB drive without extra sensors. The dc-link voltage ripple amplitude and phase angle are accurately detected with a high-performance adaptive filter under the output frequency variation. Moreover, a latent instability issue is discussed in detail. This issue is then avoided in the proposed voltage ripple controller by setting a suboptimal operation point and a mechanism to retract away from the unstable region. The proposed capacitance reduction strategy is validated on a seven-level regenerative CHB drive showing good stability and performance. It was verified that the dc capacitance can be reduced to 25% of its original design while a 5% dc voltage ripple is allowed. Therefore, the size and cost of the regenerative CHB system can be greatly reduced, while the lifetime and reliability of the motor drive are improved.

REFERENCES:

[1] B. Wu and M. Narimani, High-power converters and AC drives. IEEE-Wiley Press, 2017.

[2] J. Rodriguez, P. W. Hammond, J. Pontt, R. Musalem, P. Lezana and M. J. Escobar, "Operation of a medium-voltage drive under faulty conditions," in IEEE Transactions on Industrial Electronics, vol. 52, no. 4, pp. 1080-1085, Aug. 2005.

[3] P. W. Hammond, "A new approach to enhance power quality for medium voltage drives," in IEEE Transaction on Industry Applications, vol. 33, no. 1, pp. 202–208, Feb. 1997.

[4] J. Rodriguez, J. Pontt, N. Becker, and A. Weinstein, “Regenerative drives in the megawatt range for high-performance downhill belt conveyors,” IEEE Transactions on Industry Applications, vol. 38, no. 1, pp. 203–210, 2002.

[5] J. Rodriguez, L. Moran, J. Pontt, J. Espinoza, R. Diaz, and E. Silva, “Operating Experience of Shovel Drives for Mining Applications,” IEEE Transactions on Industry Applications, vol. 40, no. 2, pp. 664–671, 2004.
