A New Boost Switched-Capacitor Multilevel Converter with Reduced Circuit Devices

ABSTRACT:

 In this paper, a novel platform for the single phase switched-capacitor multilevel inverters (SCMLIs) is presented. It has several advantages over the classical topologies such as: An appropriate boosting property, higher efficiency, lower number of required dc voltage sources and other accompanying components with less complexity and lower cost. The basic structure of the proposed converter is capable of making nine-level of the output voltage under different kinds of loading conditions. Hereby, by using the same two capacitors paralleled to a single dc source, a switched-capacitor (SC) cell is made that contributes to boosting the value of the input voltage. In this case, the balanced voltage of the capacitors can be precisely provided on the basis of the series-parallel technique and the redundant switching states. Afterwards, to reach the higher number of output voltage levels, two suggested SC cells are connected to each other with a new extended configuration. Therefore, by the use of a reasonable number of required power electronic devices, and also by utilizing only two isolated dc voltage sources, which their magnitudes can be designed based on either symmetric or asymmetric types, a 17- and 49-level of the output voltage are obtained. Based on the proposed extended configuration, a new generalized version of SCMLIs is also derived. To confirm the precise performance of the proposed topologies, apart from the theoretical analysis and a complete comparison, several simulation and experimental results are also given.

KEYWORDS:

1.      Charge balancing control

2.      Multilevel inverters

3.      Reduced circuit devices

4.      Switched-capacitor cell

SOFTWARE: MATLAB/SIMULINK

BLOCK DIAGRAM:


Fig. 1. Proposed Switched-capacitor multilevel inverter (SCMLI) structure

EXPECTED SIMULATION RESULTS:



Fig. 2. The nine-level output voltage and current waveforms (a) for inductive load (experiment) (200 V/div&2 A/div) (b) for resistive load (experiment) (200 V/div& 2 A/div) (c) for inductive load (simulation) (d) for resistive load (simulation).

Fig. 3. The balanced voltage of capacitors in the experiments (50 V/div).

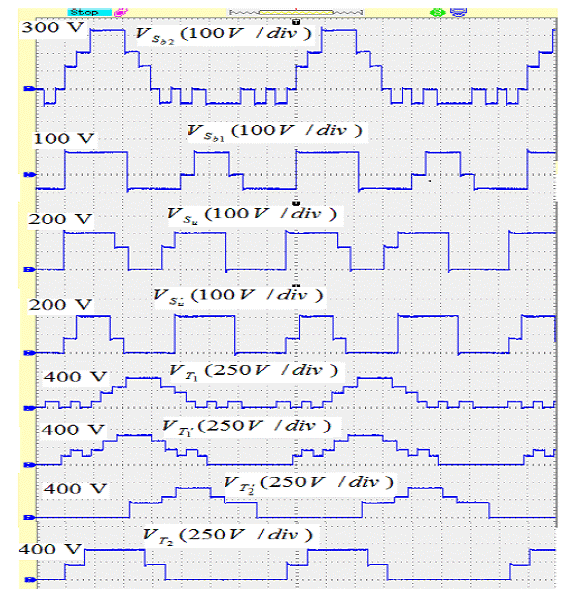

Fig. 4. The PIVs of the involved power switches based on the experimental result.




Fig. 5. The input current waveform under the inductive loading condition based on the experimental result (2 A/div).





Fig. 6. The output voltage and current waveforms (a) from no-load to full-load (200 V/div & 5 A/div experiment) (b) from full-load to no-load (200 V/div & 5 A/div experiment) (c) from no-load to full-load (simulation) (d) from full-load to no-load (simulation).


Fig. 7. The output and capacitors voltage waveforms within a step change of load based on experimental results.


Fig. 8. Output voltage and current waveforms of the proposed symmetric 17-level structure in the experiments (250 V/div& 5 A/div).



Fig. 9. Voltage across capacitors based on the experimental results (25 V/div) (Voltage ripple 2.5 V/div).

CONCLUSION:

 In this study, a new basic topology of SCMLIs has been proposed which offers features like boosting capability, reduction in number of circuit components, higher efficiency and lower overall cost. The basic structure of the proposed SCMLI has only one dc source integrated into a novel SC cell. In this case, by aiming the series/parallel conversion of switches and also the redundant switching states, nine-level of the output voltage with only eight gate drivers has been obtained. Afterwards, in order to achieve further number of output voltage levels, an extended structure of the proposed SCMLI based on two isolated modules of the integrated SC cells has been presented. In respect to the proposed extended SCMLI, a generalized topology based on different numbers of involved SC cells has also been introduced. Then, determination of capacitance besides a power loss analysis is developed for the basic structure of the proposed SCMLI. A comprehensive comparison with other recently presented structures has also highlighted the potential of the proposed topologies. Finally, to demonstrate the precise performance of the proposed SCMLI configurations, various types of simulation and experimental tests under different kinds of loading conditions have been given.

REFERENCES:

[1] S. B. Kjaer, J K. Pedersen, and F. Blaabjerg, “A review of single-phase grid-connected inverters for photovoltaic modules,” IEEE Trans. Ind. Electron., vol. 41, no. 5, pp. 1292–1306, Sep./Oct. 2005.

[2] M. Islam, S. Mekhilef and M. Hasan, "Single phase transformerless inverter topologies for grid-tied photovoltaic system: A review", Renew. Sustainable Energy Rev., vol. 45, pp. 69-86, 2015.

[3] R. R. Errabelli, and P. Mutschler, “Fault- tolerant voltage source inverter for permanent magnet drives,” IEEE Trans. Power Electron., vol. 27, no. 2, pp. 500-508, Feb. 2012.

[4] F. Z. Peng, “Z-source inverter,” IEEE Trans. Ind. Appl., vol. 39, no. 2, pp. 504–510, Mar./Apr. 2003.

[5] H. Fathi and H. Madadi “Enhanced-boost Z-source inverters with switched Z-impedance,” IEEE. Trans. Ind. Electron, vol. 63, no. 2, pp. 691-703, Feb. 2016.
